Product line
Single, twin and quad outputs from one dish. DVB-S2 compliant for HD and UHD, with a PLL oscillator for frequency stability and filtering that keeps 4G/LTE transmissions out of the band.

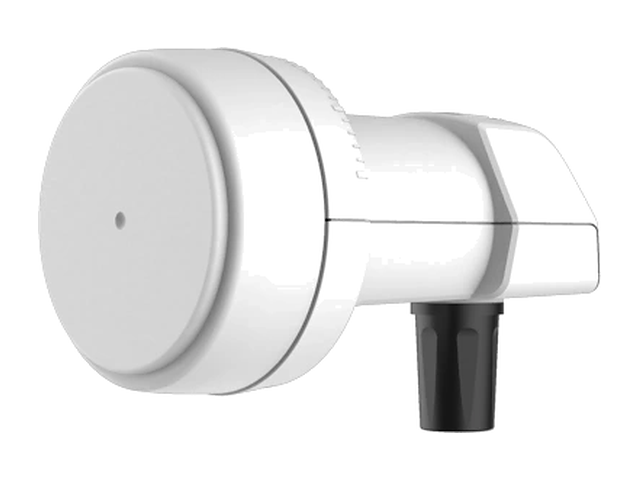

1 output
One output, for a single-tuner set-top box. PLL local oscillator for frequency stability, and a waveguide and filter design that keeps 4G/LTE transmissions out of the band.

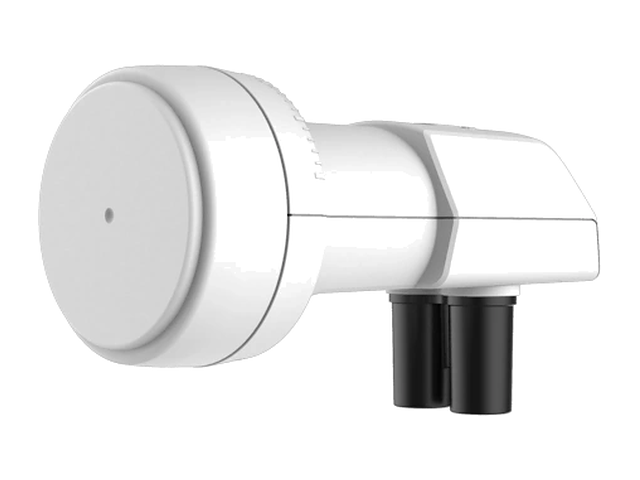

2 outputs
Two independent outputs, feeding two single-tuner boxes or one twin-tuner recorder. Each output carries its own polarisation and band selection.
4 outputs
Four independent outputs for four boxes, or two twin-tuner recorders, from one dish and one feed.
| Input frequency range | 10.7 – 12.75 GHz |
| Output frequency range | 950 – 2150 MHz |
| Local oscillator, low band | 9.75 GHz |
| Local oscillator, high band | 10.6 GHz |
| Noise figure | 0.2 dB typ., 0.7 dB max. |
| LO accuracy at 25 °C | ±500 kHz max. |
| LO temperature drift | ±1.0 MHz max. |
| LO phase noise at 10 kHz | −80 dBc/Hz max. |
| Conversion gain | 56 dB min. |
| Gain ripple over 26 MHz | ±0.6 dB |
| Gain variation over full band | ±3 dB |
| Image rejection | 40 dB min. |
| 3rd order intercept, ICP3 | 10 dBm min. |
| 1 dB compression at output | 0 dBm min. |
| Cross-polarisation isolation | 22 dB min. |
| Control, vertical | 11.0 – 14.0 V |
| Control, horizontal | 16.0 – 20.0 V |
| Control, band switching | 22 kHz ±4 kHz, 0.4 – 0.8 V pp |
| Output VSWR | 2.5 : 1 |
| In-band spurious level | −60 dBm max. |
| Operating temperature | −35 °C to +60 °C |
| Output impedance | 75 Ω |
| Output connector | F-type, female |
| Dish F/D ratio | 0.6 |
Operating temperature −35 °C to +60 °C. Current consumption and weight differ by model; see the cards above.
One output per tuner. A twin-tuner recorder counts as two. If the installation grows later, the quad costs less than a second dish.
Quoted per project. Tell us quantity, destination market and whether you need your own labelling, and we will come back with a price and a lead time.
